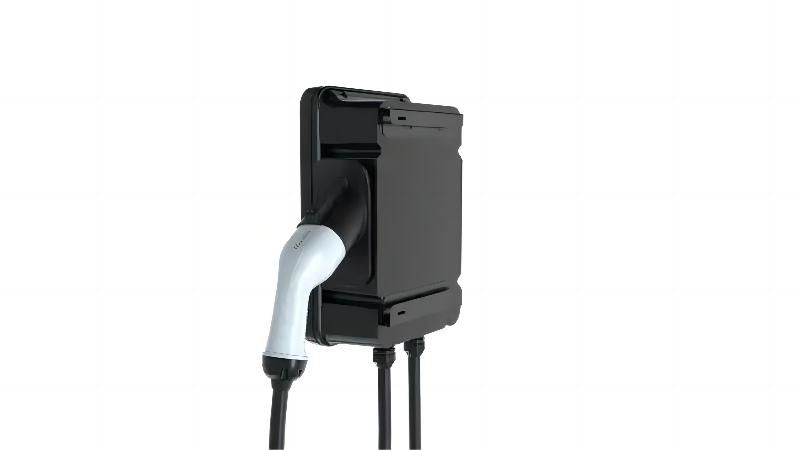

22kw AC EV Charger home 3 phase wifi type 2 electric vehicle charging station charging pile
Product name : 22kw AC EV Charger home 3 phase wifi type 2 electric vehicle charging station charging pile
Model No. : YS24010401
Price : 250$/set-350$/set
Products Category: > EVs Charging pile
22kw AC EV Charger home 3 phase wifi type 2 electric vehicle charging station charging pile
Place of Origin | China |
Output Power | 22KW |
Model Number | YS-E22 |
Interface Standard | type 2 |
Output Current | 32A |
Input Voltage | 380V |
Product name | 22kw AC EV Charger with Type 2 wall-mounted |
Keyword | home electric car charger |
MOQ | 1 Pcs |
Cable length | 5 meters |
RCD | Type A+DC 6mA |
RFID | yes |
Environment temperature | -20℃~+75℃ |
Protection degree | IP55 |
Certificate | CE, TUV, ISO,IP55, IK10 |
Advantages:
1.HIGH COMPATIBILITY
Our EV charger is compatible with most electric vehicles that comply with the standard,IEC 62196-2 standard or GB/T 20234.2 standard and SAE J1772 standard.

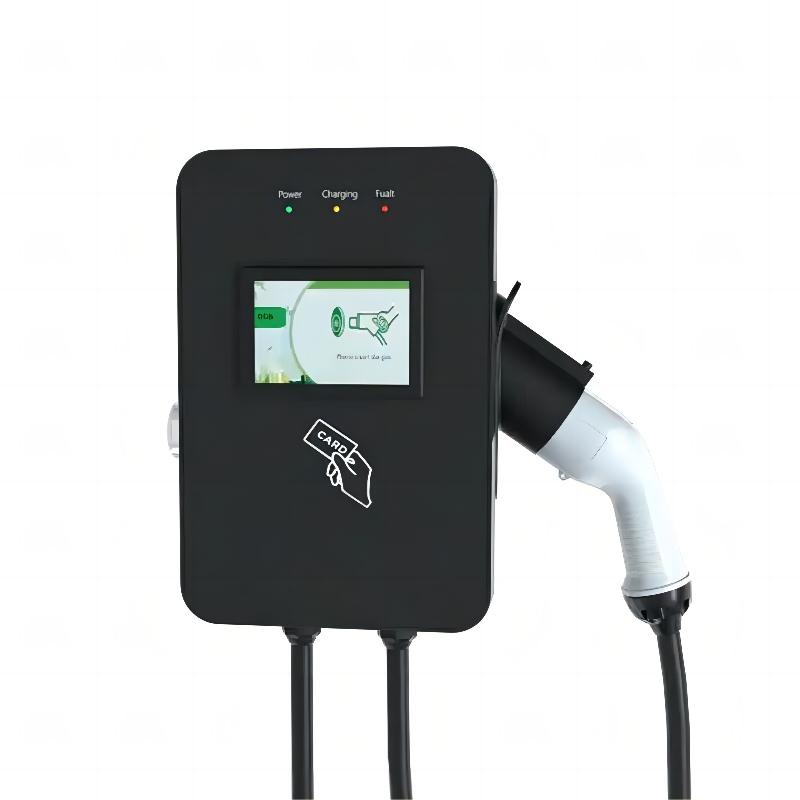

2.LCD SCREEN
The screen can show you the real-time charging date including charging time,voltage, current, power and tempera-ture of the AC EV Charger.
3.SAFE AND RELIABLE
The EV Charger has passed the strict test of CE and has multiple protection including Overvoltage, undervoltage,over-heating, overload,short circuit, leakage, lightning protection.
4.RFID FUNCTION
The EV Charger supports RFID function.The user can control the EV Charger to start and stop through the RFID card and prevent the unauthorized use of the cardless user.
5.ROBUST ENCLOSURE
Water proof level IP55. You can use the item outdoor and do not have to worry even in rainy days.The shell is made of PA, light but robust, so it will not be easily damaged. The EV Charger uses anti-theft screws. You can add a lock at the EV Charger to prevent lost.
6.CMS
Support OCPP, can connect to CMS via LAN or 4G. On the platform, you can formulate price templates,manage RFID cards, monitor and manage EV Charger, and display all operation re-cords
Our charging piles support customization
Standard export packaging display
Company profile
Dezhou Yisen New Energy Auto Co., Ltd. Was found in 2015 and located in dezhou, China. Be engaged in R & D & Manufacture chargers, which is mainly used for EV, ship, special vehicles, electric aircraft etc. We have our own charger brand MaxPower,it has a professional R & D team and expertise in power conversion and laboratory, we also have a 600m2 factory in Nansha Guangdong China.
The core team members all have working experience in well-known foreign companies and overseas study background. They have been engaged in research and market development in the field of new energy charging for a long time. Our products have obtained 3 inventions and more than 20 utility model patents. We have successfully launched many product series including movable charger, wallbox charger, portable charger and fixed charging pile and on board charger. The power of our charger varies from 3kw to 360kw. Our design is flexible and can be customized for various electrical equipment. In the future, we will continue to seek new breakthroughs in technology and market.
We have professional engineering support, high efficiency sales team and competitive price superiority, which attracts customers from all over the world. Our products are exported to more than 50 countries and regions such as Germany, Sweden, Belgium, Poland, Russia, USA, Canada, Japan, Spain, Romania, Turkey, India, Middle East etc.
Feel free to contact us if you are seeking engineering support for your charging station application! We can supply professional charging pile and very well after-sales service.
