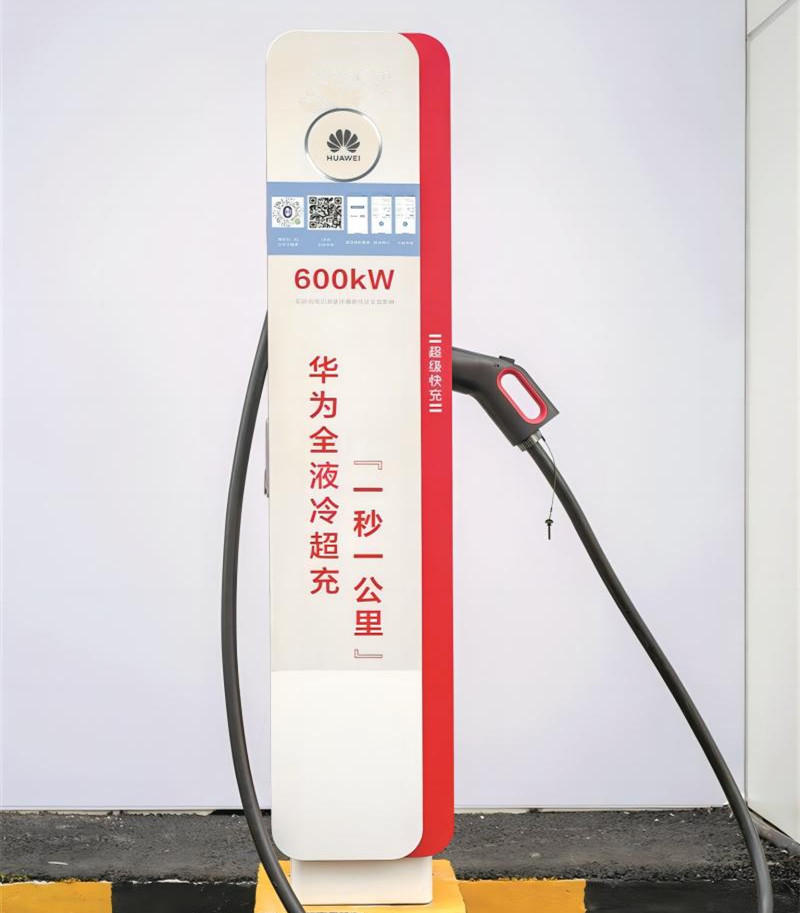

New Fully Liquid-Cooled Super EV Charging Station
Product name : New Fully Liquid-Cooled Super EV Charging Station
Model No. : YS23111001
Price : 4600$/set-5200$/set
Products Category: > EVs Charging pile
New Fully Liquid-Cooled Super EV Charging Station

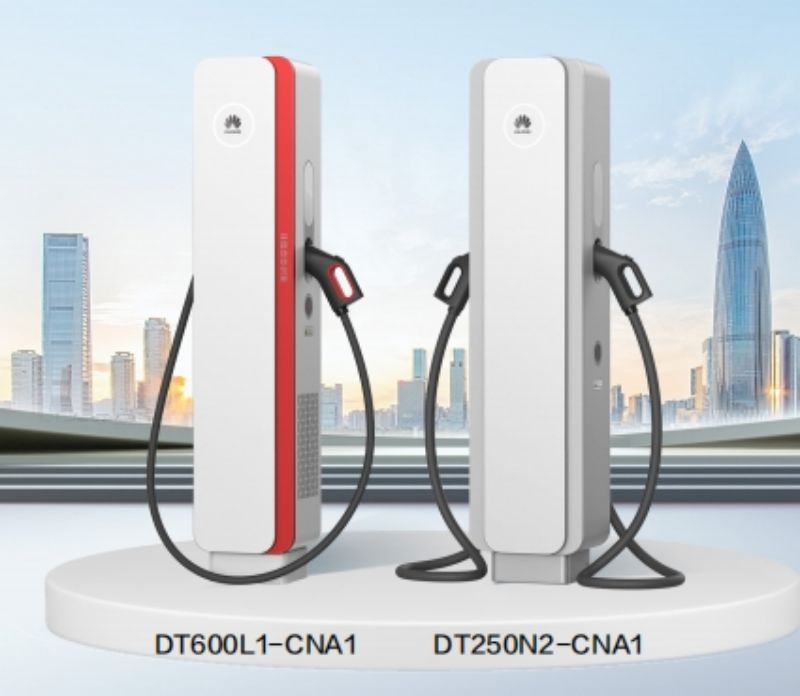

Basic information | Product model | DT600L1-CNA1 | DT250N2-CNA1 |
Dimensions (width * depth * height) | 340 * 295 * 1700 | 390 * 295 * 1700 | |
Number of charging guns | 1 | 2 | |
Gun thread length | 3.5m | 5m | |
Installation method | Floor mounted | Floor mounted | |
Protection level | IP55 | IP55 | |
Heat dissipation method | Liquid cooling | Natural cooling | |
Environmental requirements | working temperature | -35~+50 ℃ | -35~+50 ℃ |
Noise level | ≤ 55dB@25 ℃ | ≤ 50dB@25 ℃ | |
Storage temperature | -35 ℃~+70 ℃ | -35 ℃~+70 ℃ | |
relative humidity | 5% RH~95% RH | 5% RH~95% RH | |
Altitude | ≤ 4000m | ≤ 4000m | |
output characteristic | output voltage | 200-1000Vdc | 200-1000Vdc |
Charging current | ≤ 600A | ≤ 250A | |
Product specifications | GB/T27930-2015, JJG1149-2022 | GB/T18487.1-2015, NB/T33001-2018, NB/T33008.1-2018, GB/T27930-2015, JJG1149-2022 | |
Safety functions | Output overvoltage protection, short circuit protection, protective grounding continuity detection, over temperature protection, emergency stop protection, leakage protection, insulation detection, door opening protection, power outage protection, battery reverse connection protection, contactor adhesion protection, low liquid level alarm |
1. Ultimate experience: fast charging, low noise. Maximum about 600kW, noise <55dB. It can be recharged regardless of the model, and the success rate of one charge is about 99%+. The gun line is light and easy to operate. The liquid gun line is about 9KG, which is 50% lighter than the industry.
2. Extremely high quality: long life and maintenance-free. Up to 15 years + service life. Intelligent operation and maintenance, less labor. Full online operation and maintenance, "0" maintenance. No leakage of liquid or electricity. With plate and liquid transportation, water and electricity isolation design.
3. Excellent benefits: more charging and fast turnover. The charging turnover rate is doubled. High efficiency and low energy consumption. E2E efficiency is about 95.5%. Easy to expand, integrating optical and storage. Continuous evolution, no need to change mains power.
Our charging piles support customization
Standard export packaging display
Company profile
Dezhou Yisen New Energy Auto Co., Ltd. Was found in 2015 and located in dezhou, China. Be engaged in R & D & Manufacture chargers, which is mainly used for EV, ship, special vehicles, electric aircraft etc. We have our own charger brand MaxPower,it has a professional R & D team and expertise in power conversion and laboratory, we also have a 600m2 factory in Nansha Guangdong China.
The core team members all have working experience in well-known foreign companies and overseas study background. They have been engaged in research and market development in the field of new energy charging for a long time. Our products have obtained 3 inventions and more than 20 utility model patents. We have successfully launched many product series including movable charger, wallbox charger, portable charger and fixed charging pile and on board charger. The power of our charger varies from 3kw to 360kw. Our design is flexible and can be customized for various electrical equipment. In the future, we will continue to seek new breakthroughs in technology and market.
We have professional engineering support, high efficiency sales team and competitive price superiority, which attracts customers from all over the world. Our products are exported to more than 50 countries and regions such as Germany, Sweden, Belgium, Poland, Russia, USA, Canada, Japan, Spain, Romania, Turkey, India, Middle East etc.
Feel free to contact us if you are seeking engineering support for your charging station application! We can supply professional charging pile and very well after-sales service.
