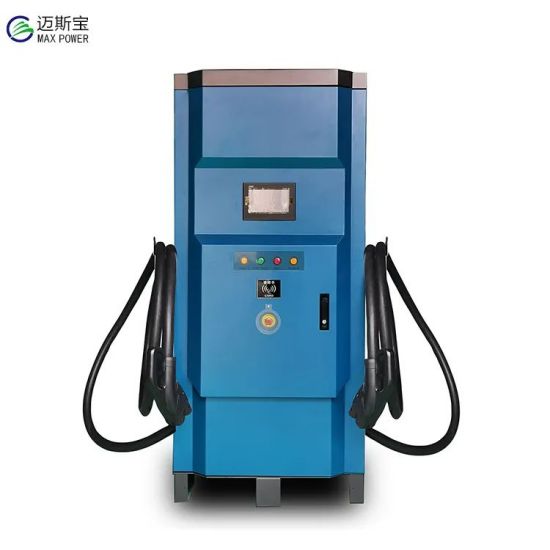

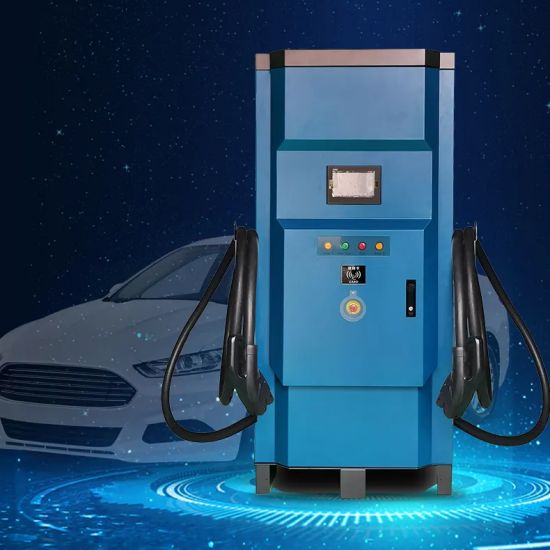

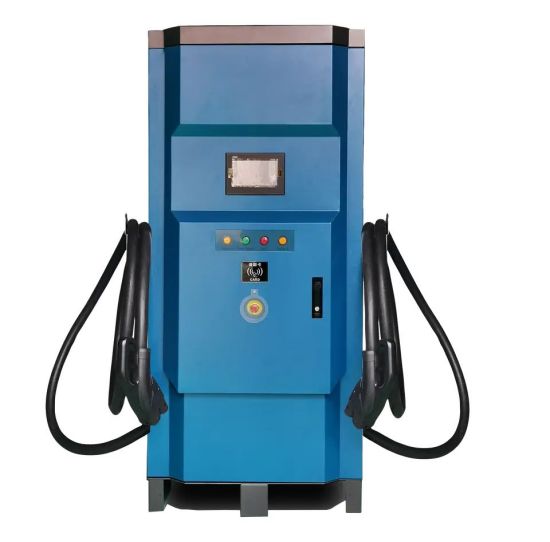

120kw new energy floor-standing electric vehicle charger commercial DC fast charging station
Product name : 120kw new energy floor-standing electric vehicle charger commercial DC fast charging station
Model No. : YS23092108
Price : 17500$/set-18100$/set
Products Category: > EVs Charging pile
120kw new energy floor-standing electric vehicle charger commercial DC fast charging station
Type | ev charger |
Charging Port | dc |
Connection | ac |
Combination | AUX Port |
Voltage | 380v |
Model Number | FC120750 |
Input Voltage | 380 VAC ± 15% |
Rated Power | 120KW |
Input Current | 190A |
Output Current Range | 0~ 250A |
Output Voltage Range | 200~750VDC (200~1000VDC in constant power mode) |
Size | 1750mm*620mm*780mm |
IP Level | IP54 |
Interface | 7 inchs colorful touch screen+IC Card |
Weight | 230KG |
EV CHARGER 60KW-150KW
*Smart DC charger is a configurable-multiple-outlet high-power charger which is suitable for CBD or public areas.
*The product consists of human-machine interaction part, power module, internal control system, communication module and charging cable assembly.
Features:
*Modular design including control system, power source system, distributed power system, power factor system
*Auto sleep mode after fully charged with low standby power consumption at <5W

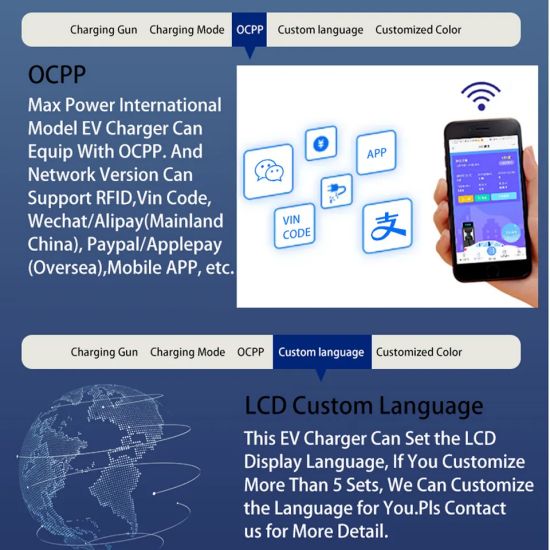

*Remote firmware upgrade with APP
*Remote power module upgrade
*Remote diagnostic function simplifis data collection and analysis process
*IP54 protection and 1K10 vandal-proof enclosure

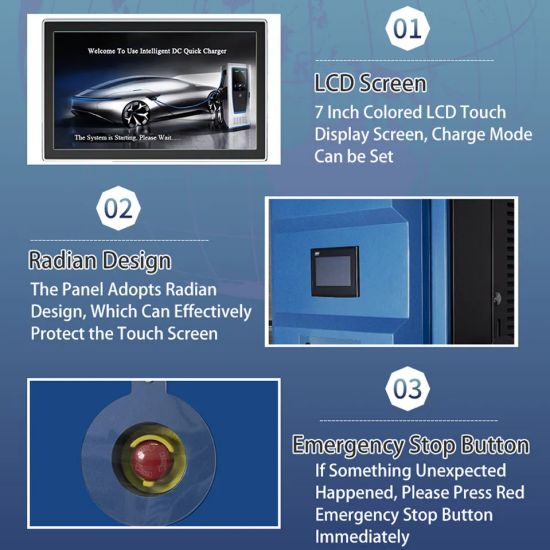

*7" colored touch LCD display for easy configuration.
Compliance Standard:
*IEC 61851 Electric vehicle conductive charging system
*IEC 62196 plugs, socket-outlets, vehicle connectors and vehicle inlets-conductive carging of electric vehicle
*DIN 70121 Electromobility-Digital communication between a d.c. EV charging station and an electric vehicle for control of d.c. charging in the combined charging system
*ISO 15118 Road vehicles-Vehicle-to-Grid Communication Interface
Our charging piles support customization
Standard export packaging display
Company profile
Dezhou Yisen New Energy Auto Co., Ltd. Was found in 2015 and located in dezhou, China. Be engaged in R & D & Manufacture chargers, which is mainly used for EV, ship, special vehicles, electric aircraft etc. We have our own charger brand MaxPower,it has a professional R & D team and expertise in power conversion and laboratory, we also have a 600m2 factory in Nansha Guangdong China.
The core team members all have working experience in well-known foreign companies and overseas study background. They have been engaged in research and market development in the field of new energy charging for a long time. Our products have obtained 3 inventions and more than 20 utility model patents. We have successfully launched many product series including movable charger, wallbox charger, portable charger and fixed charging pile and on board charger. The power of our charger varies from 3kw to 360kw. Our design is flexible and can be customized for various electrical equipment. In the future, we will continue to seek new breakthroughs in technology and market.
We have professional engineering support, high efficiency sales team and competitive price superiority, which attracts customers from all over the world. Our products are exported to more than 50 countries and regions such as Germany, Sweden, Belgium, Poland, Russia, USA, Canada, Japan, Spain, Romania, Turkey, India, Middle East etc.
Feel free to contact us if you are seeking engineering support for your charging station application! We can supply professional charging pile and very well after-sales service.
