Dezhou Yisen New Energy Auto Co.,Ltd.

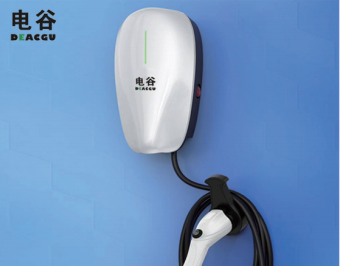

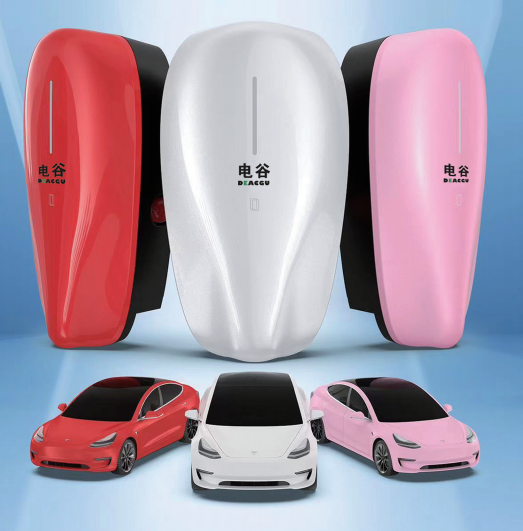

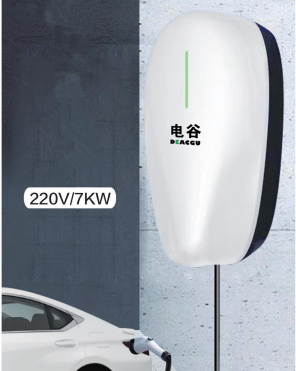

IP55 7kw Wall Mount/Post Mount Electric Vehicle AC Charger Charging Station
Product name : IP55 7kw Wall Mount/Post Mount Electric Vehicle AC Charger Charging Station
Model No. : YS23071302
Price : 270$/set
Products Category: > EVs Charging pile
IP55 7kw Wall Mount/Post Mount Electric Vehicle AC Charger Charging Station
| power level | 7kw |
| power supply | 1P+N+PE |
| Input voltage | 220Vac |
| input frequency | 50Hz |
| The output voltage | 220Vac |
| Output current | 32A |
| charging port | (National Standard/European Standard) Charging Gun |
| gun line length | 5m |
| start method | Plug and play, scan code, swipe card |
| Communication Interface | 4G |
| letter of agreement | Support multi-platform protocol |
| LED indicator | Tricolor |
| Leakage Protection | Type A |
| degree of protection | IP55 |
| Executive standard | GB/T184871GB/T18487.2 EN/IEC62196-2 GB/T20234.2GB/T34657.1 EN/IEC61851-1 NB/T33002, NB/T33008.2 ENMEC61851-21-2 |
| protection design | Undervoltage protection, overvoltage protection, short circuit protection, anti-shock protection, overload protection, over temperature protection, low temperature protection, full application protection, grounding protection |
| cooling method | natural cooling |
| Operating temperature | -30℃-55℃ |
| Working humidity | 5%-95% non-condensing |
| working altitude | <2000m |
| installation method | Wall-mounted, column-mounted (optional) |
| Alignment | bottom line, bottom line |
| Product size (wide, high, deep) | 205*350*13mm |
The design follows the principles of environmental protection and low energy consumption, saving energy and electricity; Automotive grade industrial design aesthetics, exquisite and compact appearance; APP key charging, supporting appointment charging, saving time and economy; LP55 protection level, UV resistant design, achieving high protection and long service life.
