Commercial MLHEV Fast Charger DC Solar Power Charging Station
Product name : Commercial MLHEV Fast Charger DC Solar Power Charging Station
Model No. : YS23053104
Price : 3800$-4000$
Products Category: > EVs Charging pile
Commercial EV Fast Charger DC Solar Power Charging Station
Production Parameters | ||
Model | 40KW | |
AC Input | Input voltage | 260-475V |
AC Input Connection | 3P + N +PE, Wye connection | |
Max. Input Current | 64A | |
Frequency | 50 /60 Hz | |
Power Factor | >0.99@full load | |
Efficiency | 95% | |
DC Output | Output Voltage Range | 200-750Vdc |
Max. Output Power | 40KW | |
Max. Output Current | 133A | |
User Interface | TFT-LCD Touch Panel | Yes(swiping card without TFT-LCD Touch Panel) |
Push Buttons | Yes | |
Interface | Yes | |
Packing | Dimension | W:721×475× 232 U:1500×520× 250 |
Weight | 64KG | |
Environmental | Operating Temperature | -20~50ºC,25ºC(TYPE) |
Humidity | 5%-90% RH, non-condens,ng | |
Altitude | 2000m | |
IP Level | IP54 | |

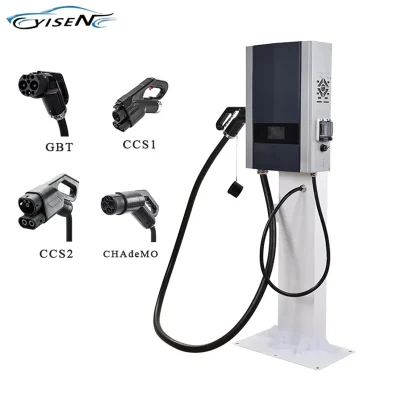

Mechanical | Cable Length | 5M (CHAdeMO) , 5M (CCS), 5M(GB/T) Customized acceptable |
Regulation | EN61851-1 | |
Regulation | Certification | CE , ROHS |
Charging protocol | CHAdeMO 2.0 / DIN 70121/ISD1S118/IEC618Sl-23,IEC618Sl-24 |
