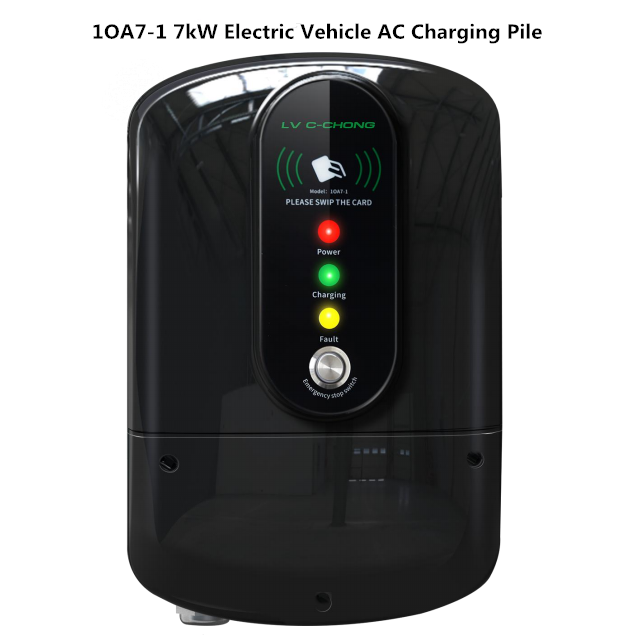

7kw AC Electric Vehicle Charger /EV Pile/EV Charging Station
Product name : 7kw AC Electric Vehicle Charger /EV Pile/EV Charging Station
Model No. : YS23071301
Price : 295$/set
Products Category: > EVs Charging pile
7kw AC Electric Vehicle Charger /EV Pile/EV Charging Station
Item Number | 1OA7-1 | rated power | 7kW |
product name | 7kW Electric Vehicle AC Charging Pile | Specifications | 1OA7-1 |
Product Usage | EV charging | Product Range | electric car |
product description | Charging equipment with specific control, display, and communication to provide AC power for electric vehicle on-board chargers | ||
input and output parameters | |||
power supply | 1P+N+PE | ||
Rated input voltage | 230Vac | ||
AC input frequency | 50Hz/60Hz | ||
Rated output voltage | 230Vac | ||
Charger | Type 2 | ||
Number of output channels | single shot | ||
Rated output current | 32A | ||
Rated output power | 7kW | ||
Hardware Configuration | |||
communication module | 4 modes are optional: stand-alone, 4G, Wi-Fi (single frequency 2.4GHz), Ethernet | ||
LED indicator | Networking (green), power supply (green), charging (red), fault (yellow) | ||
Start charging mode | credit card | ||
Credit card function (standard configuration) | Working frequency: 13.56MHz, in line with mifare standard card, card swiping distance 0~50mm | ||
Safety | Overcurrent protection, surge protection, overvoltage protection, overtemperature protection, emergency stop | ||
Executive standard | EN/IEC 61851-1:2019 | ||
Product Features | |||
Leakage current protection | Type B circuit breaker (external) | ||
output overcurrent protection,over temperature protection | No output after protection, recoverable | ||
emergency stop protection | In an emergency, press the emergency stop button (the ring light of the emergency stop button flashes red) to stop charging;After the fault is resolved, press and hold the emergency stop button until the ring light goes out, and the charging pile will release the emergency stop state | ||
Protocol | OCPP 1.6 |
The design follows the principles of environmental protection and low energy consumption, saving energy and electricity, and automotive-grade industrial design aesthetics. Exquisite and compact appearance, super long service life. It is easy to install, small in size, light in weight, more stable in operation and safer in use.
